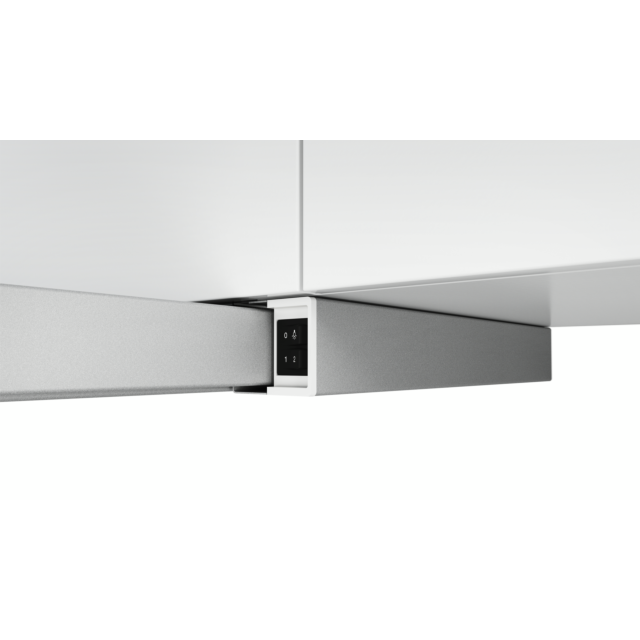

Features Rocker switch control for extractor speeds and light Automatic On/Off operation when telescopic canopy is pulled out and pushed back Capacitor motor 2 power levels 2 x 1,5W LED 2 removable metal grease filter cassettes Design 60 cm wide Silver metallic lacquer Handle strip specification: stainless steel with logo Filter cover stainless steel, perforated and dishwasher safe Performance Suitable for ducted or recirculating operation For recirculated extraction recirculating kit (accessory) needed Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D) Extraction rate according to EN 61591 max. 328 m/h Noise level according to EN 60704-2-13 at max.normal use exhaust air:64 dB(A)re 1 pW(A)re 1 pW Colour Temperature: 3500 K Light Intensity: 131 lux Power rating: 93 W Average Energy Consumption: 41.1 kWh/year* Blower Efficiency Class: D* Lighting Efficiency Class: A* Grease Filtering Efficiency Class: C* Planning and installation information Dimensions (HxWxD): 203 x 598 x 290 mm Built-in dimensions (HxWxD): 162 x 526 x 290 mm Diameter pipe 150 mm ( 120 mm enclosed) Electrical cable length 1.75 m
| Energy Rating | C |
|---|---|
| Manufacturer | Bosch |
| GTIN | 4242005231942 |
| Colour | Metallic silver |
| Model Number | DFM063W56B |
| Minimum chimney height in mm (recirc.) | 203 |
| Maximum chimney height in mm (recirc.) | 203 |
| Maximum output air extraction | 328 |
| Maximum chimney height in mm (exhaust.) | 203 |
| Diameter of air outlet | 120 / 150 |
| Number of speed settings | 2 |
| Remote control | No |
| Number of motors | 1 |
| Voltage | 220-240 |
| Plug type | GB plug |
| Optional accessories | DWZ1IT1B4,DWZ1IT1I4 |
| Gross Weight | 10.1 |
| Width | 598 |
| Net Weight | 8.7 |
| Energy Rating | C |
| Product Series | Serie | 2 |
| Minimum chimney height in mm (exhaust.) | 203 |
| Maximum output recirculating air | 231 |
| Length of electrical supply cord | 175 |
| Electrical Connection (W) | 93 |
| Depth | 290 |
| Current (A) | 10 |
| Grease filter material | Washable aluminium |
| Noise level (dB) | 64 |

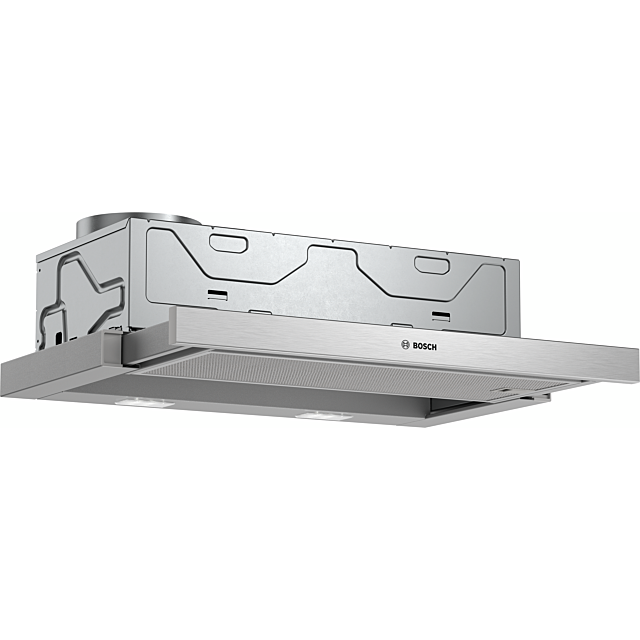

Bosch DFM063W56B 60cm wide, Logo Design Handle, 3 speed , Rocker Switch Control, LED Lights. Optiona
Now
£199.00
Please contact us for a delivery date
- Warranty 2 Years
Colour
Metallic silver
Manufacturer Guarantee
2 years
EAN
4242005231942
Energy Rating
C
Diameter of air outlet
120 / 150
Grease filter material
Washable aluminium
Maximum chimney height in mm (exhaust.)
203
Maximum chimney height in mm (recirc.)
203
Maximum output air extraction
328
Maximum output recirculating air
231
Minimum chimney height in mm (exhaust.)
203
Minimum chimney height in mm (recirc.)
203
Number of motors
1
